Mounting Blocks and Systems – UniMount & Uniclamp – Supporting Rooftop HVAC services

A Sustainable, Durable, Modular Load Device

The XTYRE UniMount has been developed in conjunction with client’s needs to have a one size fits all mount for cabling, piping, and ducting on flat roofs. Can be used in conjunction with UniClamp.

Made from post-consumer recycled tyres. Driving sustainability, circularity and adding to your ESG scorecard and goals. XTYRE’s products are fully recyclable.

Main Function And Purpose

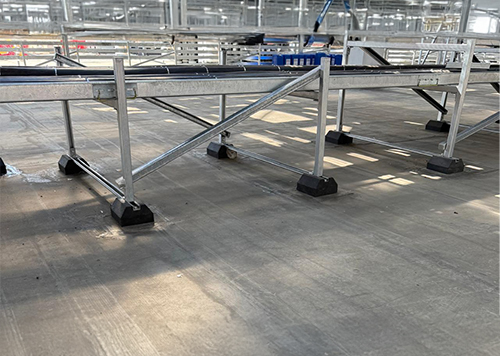

• The mounting support can carry any length of U-Channel or steel frame needed in the H-VAC environment, while protecting waterproofing.
• No more drilling H-VAC mounts into waterproofing or building plinths. Simple bolt or strap onto the mount or multiples thereof for wider/longer installations. Our mounts provide a stable resilient, and durable base.
• The M10 integrally moulded inset bolts mean that your H-VAC components can be easily bolted on in multiples (series or parallel) with hardware available from most retailers.
• There are drainage channels moulded into the base-profile to prevent any build-up of water.
• The UniMount system can be permanently set by way of a two-part polyurethane or epoxy adhesive.

Sustainable Innovation

Manufactured using the inherent strengths of repurposed tyres, this mounting block gives new life to waste materials supporting your ESG score and your Carbon footprint.

• Assisting in dealing with one of the largest waste streams in the world, used scrap Tyres (of which +4billion are now manufactured per annum).
• Each footing uses the equivalent yield of crumb rubber from 1 x used passenger Tyre. 10 x footings removes 1 cubic meter of waste tyre landfill.
• Lightweight vs concrete.
• Concrete plinths do not need to be cast onto waterproofing saving this cost and guarding against potential leaks.
• Can be bonded directly to the water proofing. No cutting and resealing resulting in quicker construction timelines.
• Rooftop mounts are manufactured from recycled rubber fibres and a Polymeric bonding agent in press moulded panels.
• Flexibility resistant to expansion and contraction.
• Approximately 60 – 70 Shore hardness.

The mounting component or block is manufactured utilising a proprietary combination of waste tyre aggregate and polyurethane to mould a product with a 70-year lifespan.

Key Features & Benefits

• Eco-Friendly:               Made from high-quality recycled rubber.
• Standard Sizes:          200mm (L) x 180mm (W) x 100mm(H).
• Appearance:                 Matt black.
• Fitting:                           Fit with UniClamp System.

Applications

• All flat-roof buildings or structures.

Technical Specifications
